Rear Cam Assembly

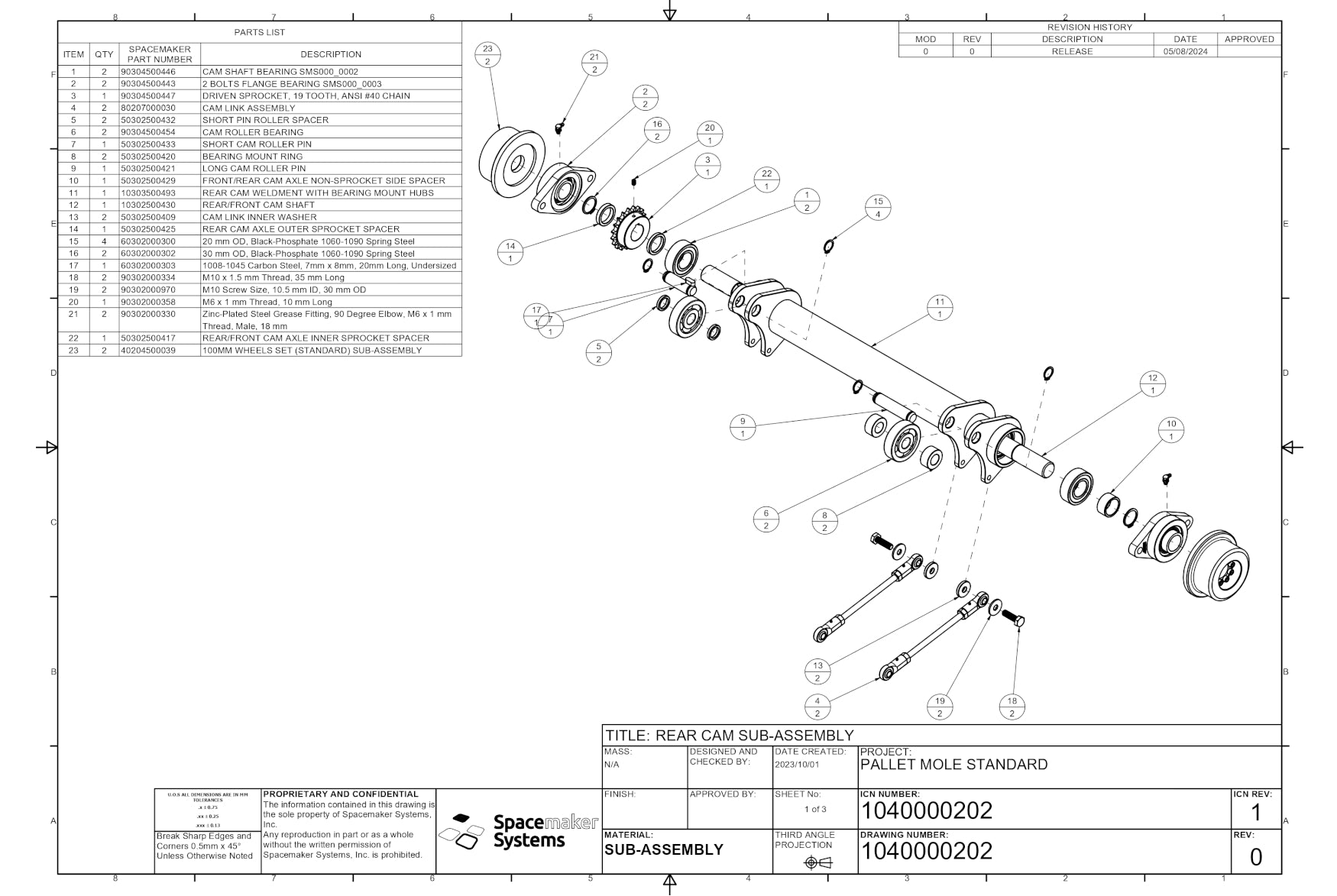

← Back to Pallet Mole ® Rear Cam Assembly Exploded View
Product MPN Price Quantity Add to Order
CAM Shaft Bearing SMS000_0002
CAM Shaft Bearing SMS000_0002
$ 166.64
90304500446 $ 166.64
2 Bolts Flange Bearing SMS000_0003
2 Bolts Flange Bearing SMS000_0003
$ 163.95
90304500443 $ 163.95
Driven Sprocket, 19 Tooth, ANSI #40 Chain
Driven Sprocket, 19 Tooth, ANSI #40 Chain
$ 207.58
90304500447 $ 207.58
CAM Link Assembly
CAM Link Assembly
$ 409.86
80207000030 $ 409.86
SHORT PIN ROLLER SPACER
SHORT PIN ROLLER SPACER
$ 21.08
50302500432 $ 21.08
CAM Roller Bearing
CAM Roller Bearing
$ 88.64
90304500454 $ 88.64
Short CAM Roller Pin
Short CAM Roller Pin
$ 57.64
50302500433 $ 57.64
Bearing Mount Ring
Bearing Mount Ring
$ 31.24
50302500420 $ 31.24
Long CAM Roller Pin
Long CAM Roller Pin
$ 79.72
50302500421 $ 79.72
Front/Rear CAM Axle Non-Sprocket Side Spacer*
Front/Rear CAM Axle Non-Sprocket Side Spacer*
$ 7.82
50302500429 $ 7.82
Rear CAM Weldment With Bearing Mount Hubs
Rear CAM Weldment With Bearing Mount Hubs
$ 5,506.20
10303500493 $ 5,506.20
Rear/Front Camshaft
Rear/Front Camshaft
$ 531.30
10302500430 $ 531.30
Cam Link Inner Washer
Cam Link Inner Washer
$ 26.24
50302500409 $ 26.24
Rear Cam Axle Outer Sprocket Spacer
Rear Cam Axle Outer Sprocket Spacer
$ 7.82
50302500425 $ 7.82
20 mm OD, Black-Phosphate 1060-1090 Spring Steel
20 mm OD, Black-Phosphate 1060-1090 Spring Steel
$ 17.39
60302000300 $ 17.39
30 mm OD, Black-Phosphate 1060-1090 Spring Steel
30 mm OD, Black-Phosphate 1060-1090 Spring Steel
$ 17.39
60302000302 $ 17.39
1008-1045 Carbon Steel, 7mm x 8mm, 20mm Long, Undersized
1008-1045 Carbon Steel, 7mm x 8mm, 20mm Long, Undersized
$ 7.33
60302000303 $ 7.33
M10 x 1.5 mm Thread, 35 mm Long*
M10 x 1.5 mm Thread, 35 mm Long*
$ 1.30
90302000334 $ 1.30
M10 Screw Size, 10.5 mm ID, 30 mm OD*
M10 Screw Size, 10.5 mm ID, 30 mm OD*
$ 1.60
90302000970 $ 1.60
M6 x 1 mm Thread, 10 mm Long*
M6 x 1 mm Thread, 10 mm Long*
$ 1.20
90302000358 $ 1.20
Zinc-Plated Steel Grease Fitting, 90 Degree Elbow, M6 x 1 mm Thread, Male, 18 mm
Zinc-Plated Steel Grease Fitting, 90 Degree Elbow, M6 x 1 mm Thread, Male, 18 mm
$ 2.40
90302000330 $ 2.40
Rear/Front Cam Axle Inner Sprocket Spacer*
Rear/Front Cam Axle Inner Sprocket Spacer*
$ 7.82
50302500417 $ 7.82
100MM Wheels Set (Standard) Sub-Assembly
100MM Wheels Set (Standard) Sub-Assembly
$ 317.34
40204500039 $ 317.34
